VCB CT WITH HT CT

Home Our Service

All VCB

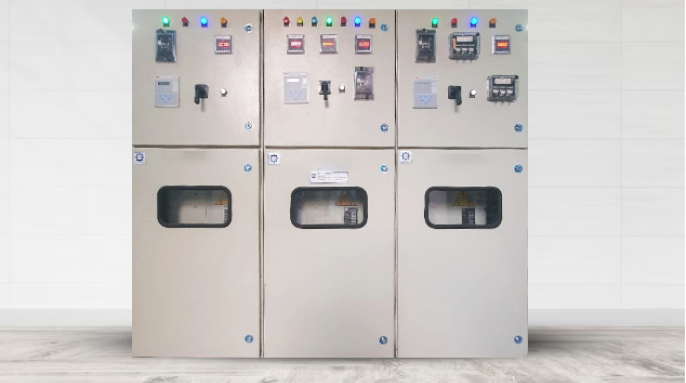

VCB CT with HT CT

Enhance your electrical system's safety and efficiency with our VCB CT with HT CT. Designed for high-voltage applications, this robust combination of Vacuum Circuit Breaker (VCB) Current Transformer (CT) and High Tension (HT) Current Transformer ensures precise current measurement, reliable protection, and seamless integration into your power distribution network.

Our VCB CT with HT CT is ideal for industrial, commercial, and utility-scale installations, offering superior performance, durability, and compliance with international safety standards. The accurate current sensing capability helps in monitoring load, detecting faults, and improving overall operational efficiency.

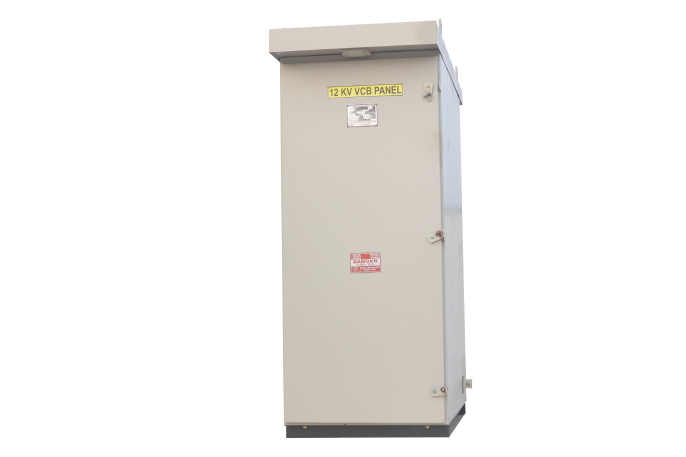

VCB CT with HT CT ▶
NO. DESCRIPTION MAKE QTY. HVSECTION SWITCHBOARD
1 SWITCH BOARD=2MMCREA STEEL FABRICATED OUTDOOR TYPE IP55 HINDALCO/ALLUCA 1 LOT – –
2 BUSBAR ALLUMINIUM SIZE 50MMX8MM HINDALCO/ALLUCA 1 LOT – –
3 SWITCHGEAR EARTHING BUSBAR; ALLUMINIUM 50MMX6MM HINDALCO/ALLUCA 1 LOT RATING OF VCB VOLTAGE 12KV RATING OF VCB AMP 800 AMP, SHORT TIME CURRENT 25KA/3SEC
4 TRIPPING COIL VOLTAGE 110VDC, CLOSING COIL VOLTAGE 230VDC, SPRING CHARGE METER, MECHANICAL OF RATING COUNTER – 1 NO CT. CROM PTON TYPE
5 RESIN CAST 200/1-1A, BURDEN 2.5VA, HTCT SEI/ASHMOR 3 NOS METERING CORE-1 CLASS-1, PROTECTION CORE-2 CLASS-5P10 METERING
6 DIGITAL AMMETER SINGLE LINE CLASS-1 WITH ASS SECURE ASHMOR 1 NOS – –
7 VOLTAGE PRESENCE INDICATOR ASHMOR 1 NOS – –
8 TRANSFORMER FAULT RELAY(63) FOR THE BUCH TMP110VDC SALZER 1 NOS – –
9 TRANSFORMER FAULT RELAY (63) FOR WTI TMP 110VDC SALZER 1 NOS – –
10 TRANSFORMER FAULT RELAY(63) FOR OTI TMP 110 VDC C&S 1 NOS – –
11 AUXILIARY RELAY FOR DC FAIL(80)110VDC C&S 1 NOS – –
12 NUMERICAL NON DIRECTIONAL 30C+1EF RELAY 10VDC (50,51,50N,51N) C&S 1 NOS – –
13 LOCKOUT(MASTERTRIP) RELAY(86)110VDCCLR-A-H,110VDC – 1 NOS – –
14 IDMT RELAY IRI PROX31-E1, INDICATIONS ANNUNCIATION & MISCELLANEOUS C&S 1 NOS – –
15 INDICATING LAMP-ON,OFF,TRIP,TRIP CKT & HEALTHY SPRING CHARGE JIGO – – –
16 EMERGENCY TRIP PUSHBUTTON WITH 1NO+1NO ESBEE 5 NOS – –
17 TNC SWITCH SALZER/SHIRKE 1 NOS – –
18 HOOTER 230V AC/DC PROTON/INQORE 1 NOS – –
19 BATTERY BACKED POWERPACK 230VAC/110VDC GOGATE 1 NOS – –
20 SPACE HEATER WITH THERMOSTAT 230VAC SE 2 NOS – –
21 MCB–6A,10A,16AMP L&T 6 NOS – –
22 8 WINDOW ANNOUNCIATOR Address EAOL/INQORE 1 NOS – –

VCB CT with HT CT from AJ Electronics ensures precise current measurement and reliable protection for high-voltage electrical systems, making it ideal for industrial, commercial, and utility applications.

  • • High-precision current measurement
  • • Compact and durable design
  • • Compatible with high-voltage distribution systems
  • • Ensures safety and protection against electrical faults
  • • Easy installation and maintenance
  • • Supports industrial, commercial, and utility-scale applications
  • • Reliable performance under extreme temperature and load conditions
  • • Complies with international electrical safety and quality standards
  • • Reduces downtime with enhanced fault detection
  • • Long service life with robust construction
  • • Optimized for energy monitoring and management systems
  • • Lightweight design for easy handling and transportation
